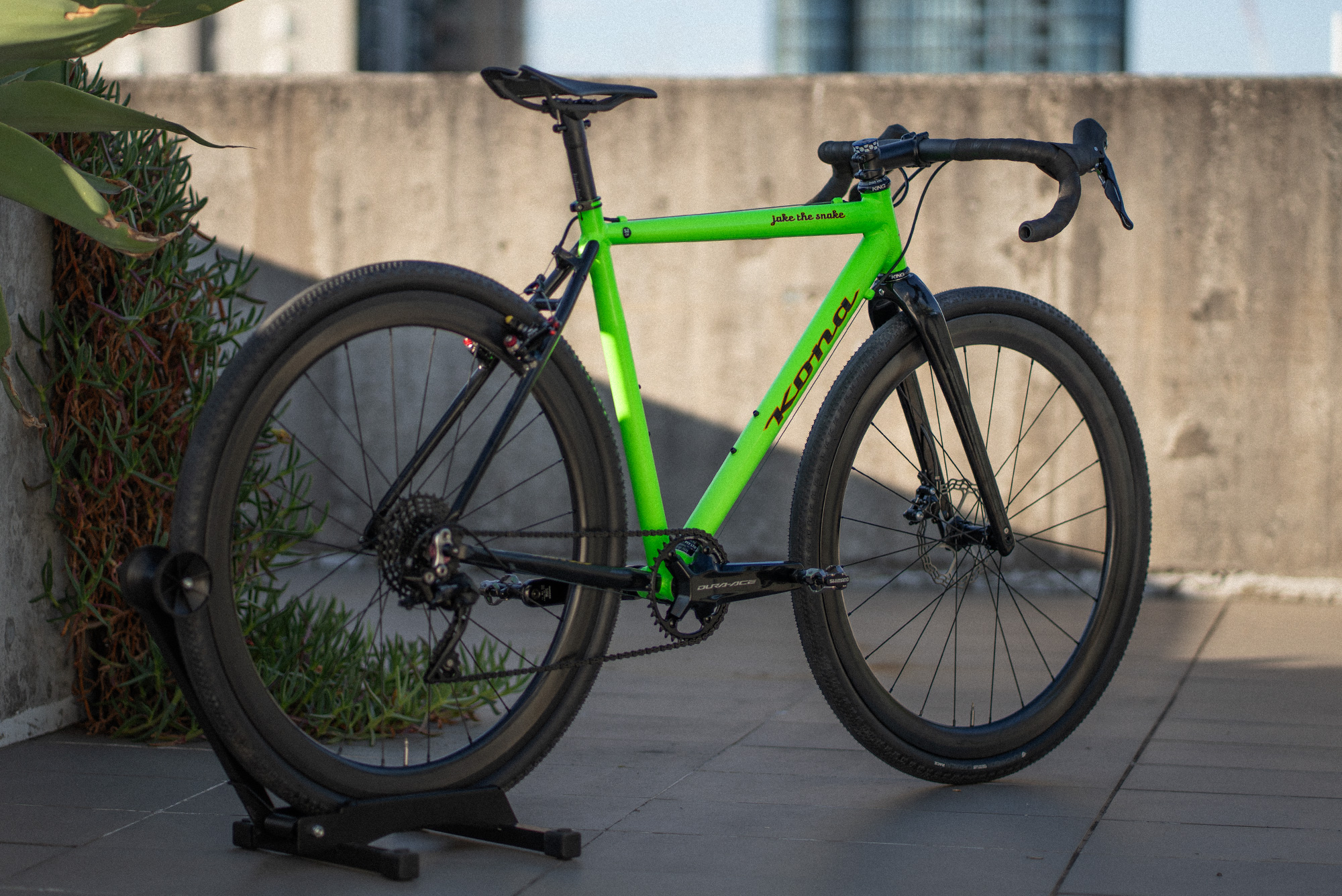

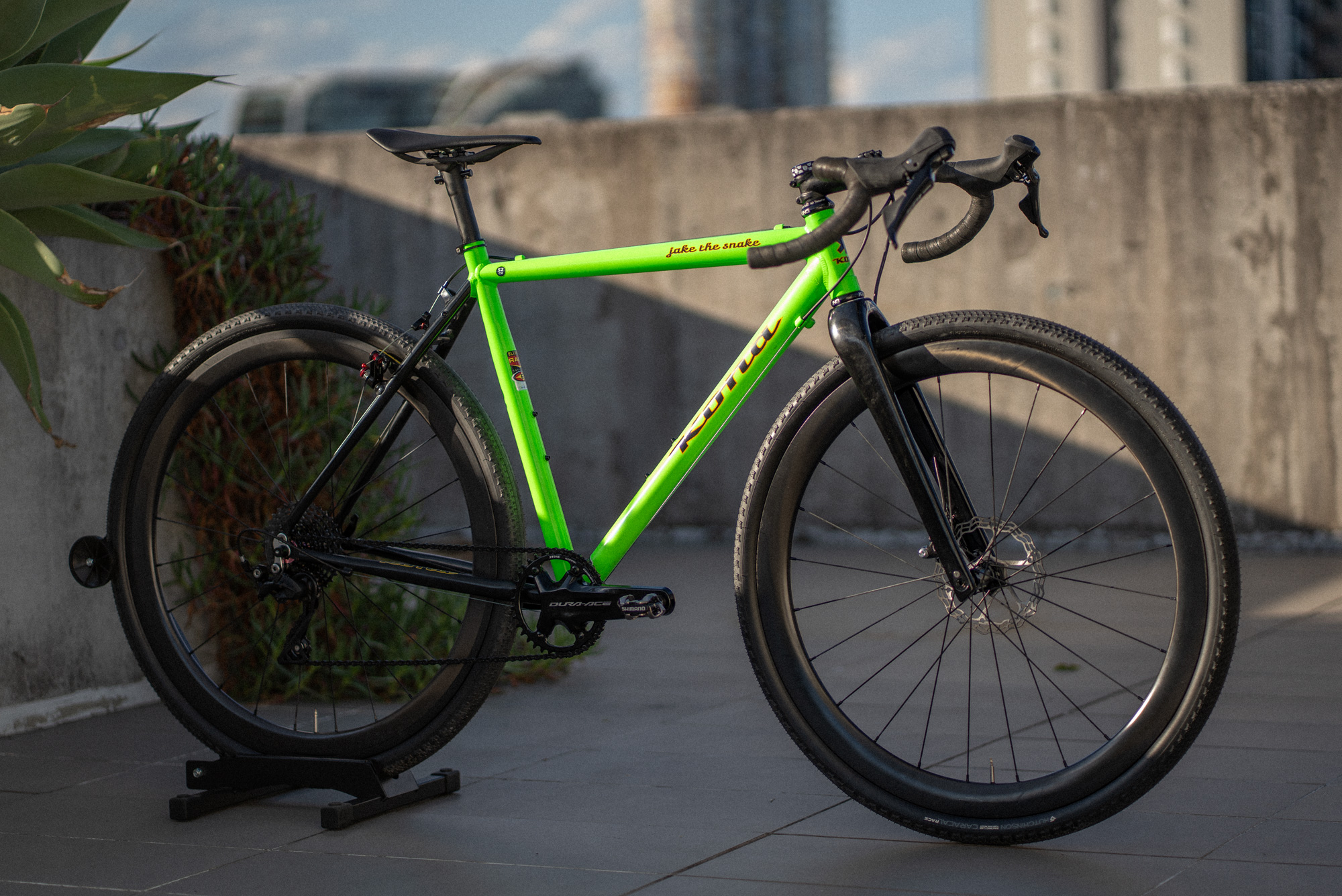

Gravel bike? Nah, Cyclocross bike? Alright! This is my New Old Stock (NOS) 2007 Kona Jake the Snake in size 52 that’s come straight out of the original box (it’s never been ridden!). The shop owner Mark at Vanilla Cycles had the frameset in storage, took it out and whacked a mish mash of low-spec parts on it; Microshift Advent X, Tektro brakes, all stuff headed for my parts bin.
It’s one of the first gen models which uses Easton Ultralite Race tubing (Made in USA), but even so it came in at a hefty 9.86kg. The build was a bit of a headfuck as I wanted to get a hydraulic brake on the front for more braking power, but still wanted to keep the standard rim brake rear.
In the end it’s more of an XBIKING build, and definitely one of my “loosest” builds to date as I’ve used a lot of parts from AliExpress as well as bits from my parts bin. The 105 mechanical “groupset of the people” came off my Allez Sprint, the Dura Ace crankset (AKA boat anchor) came off my S5 and ZEN Carbon Bike came to the party with a custom thru axle disc brake front wheel and rim brake rear wheel.
SPECS:

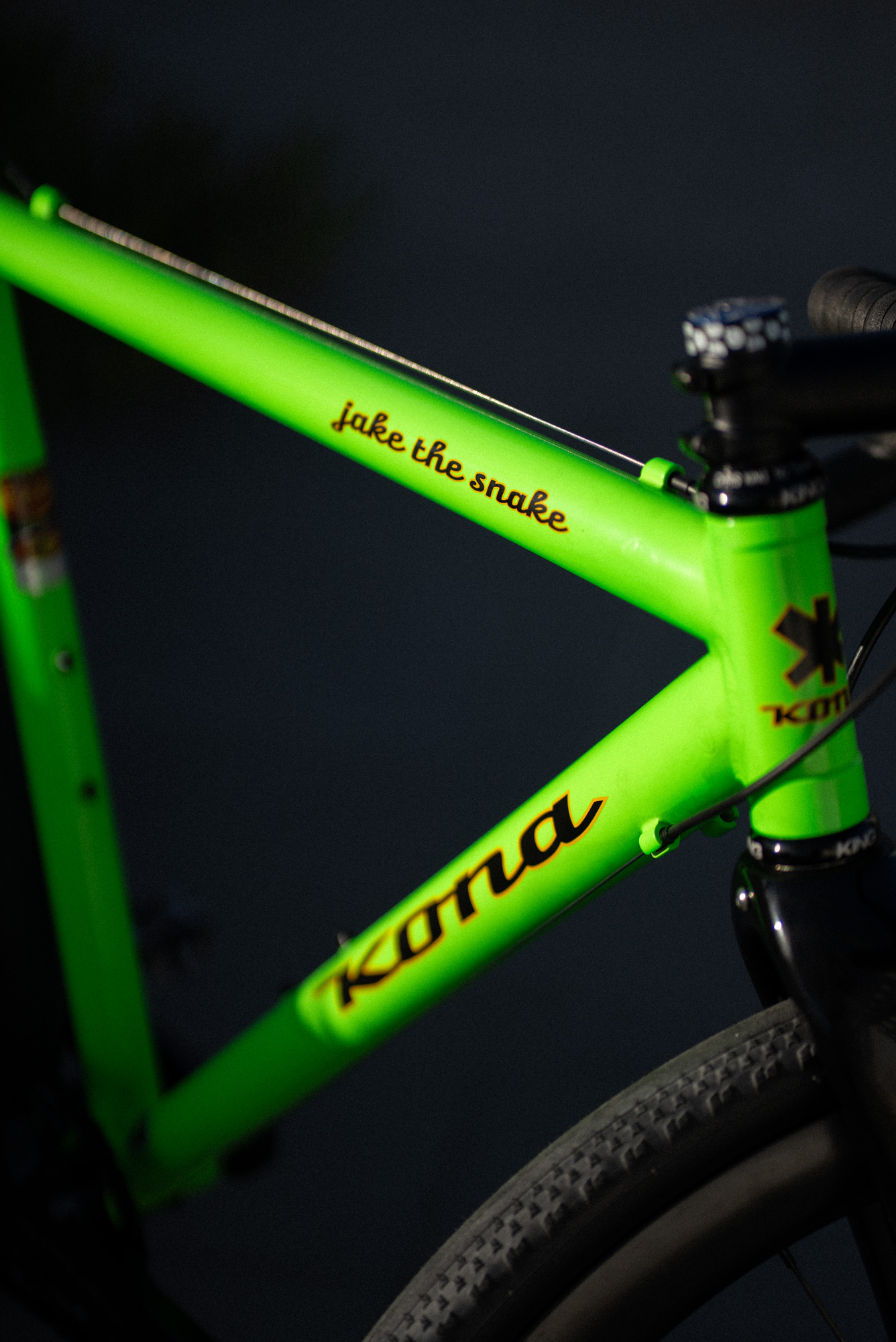

Kona Jake the Snake (2007) Size 52

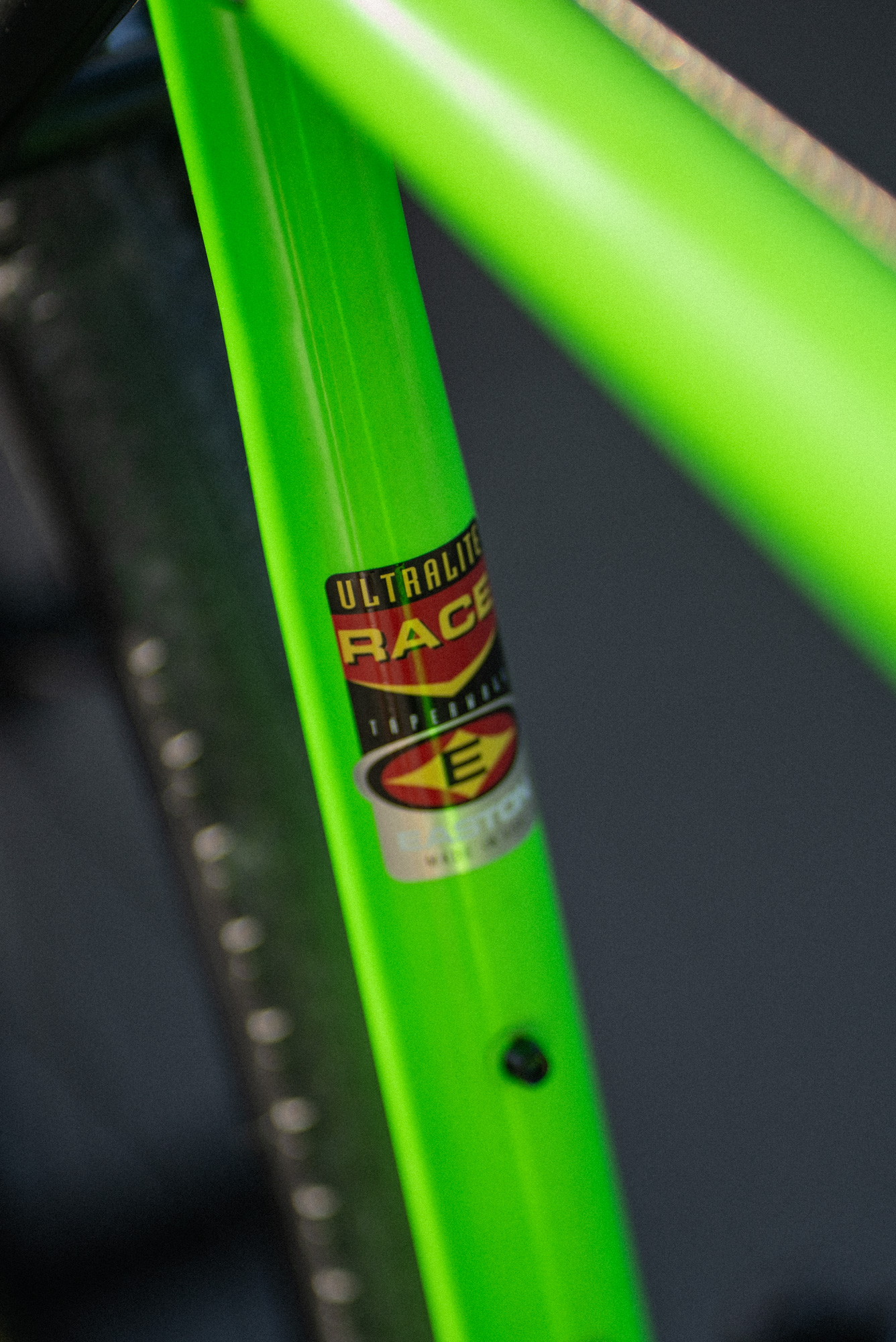

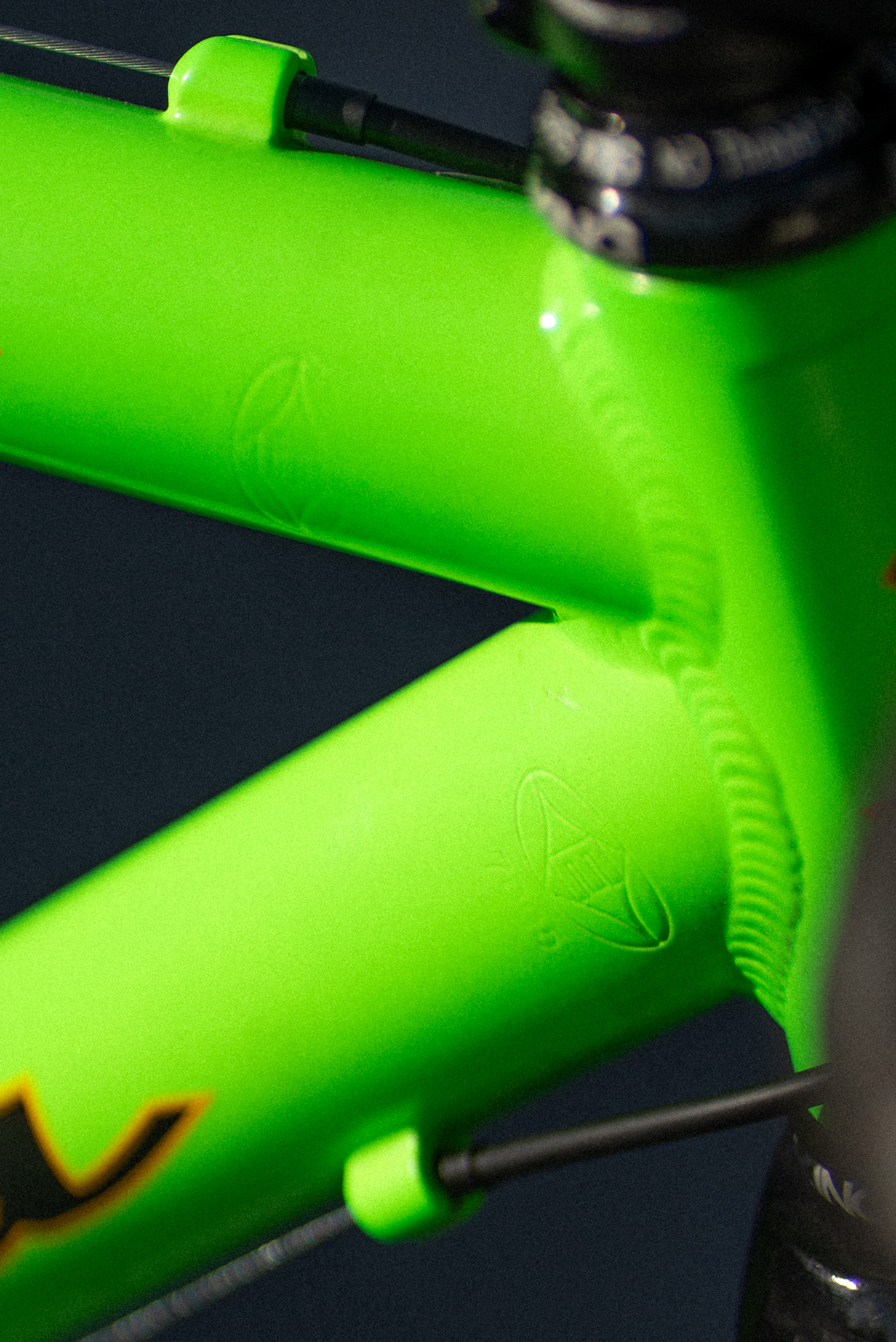

TIG-welded Easton Ultralite Race tubing (Made in USA)
New Old Stock (NOS) – Never used (1597g)
Headset: (83g)
Fork: Carbon disc internal routing (432g)
Compression Plug: J&L (14g)
Shifter/Lever Right: Shimano 105 R7020 11-Speed (377g)
Shifter/Lever Left: Shimano 105 R7000 (240g)
Rear Derailleur: Shimano 105 R7000 GS (227g)
Rotor: Galfer Wave 160mm (95g)
Rotor Lockring: Zipp (7g)

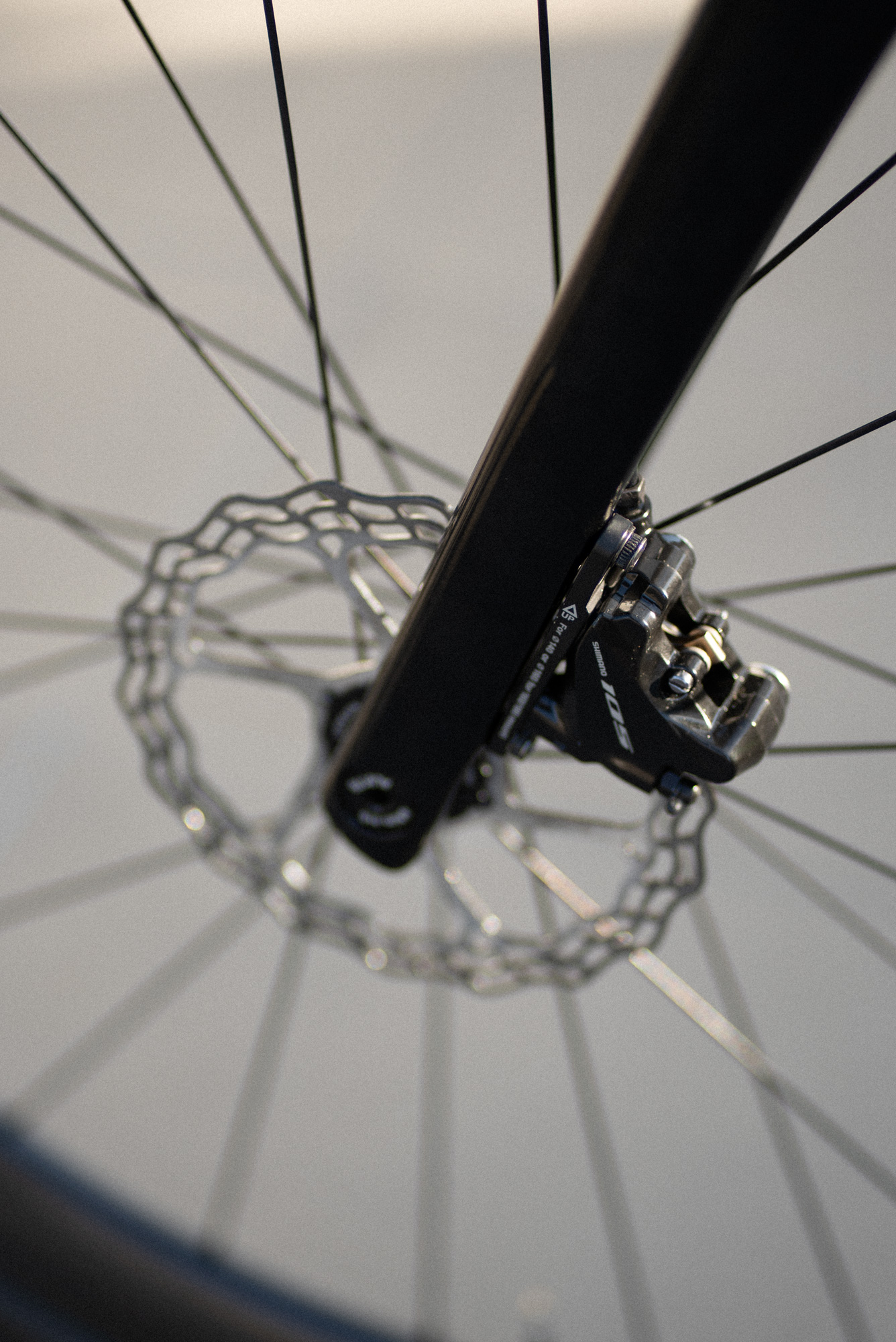

Front Brake: Shimano 105 (147g)

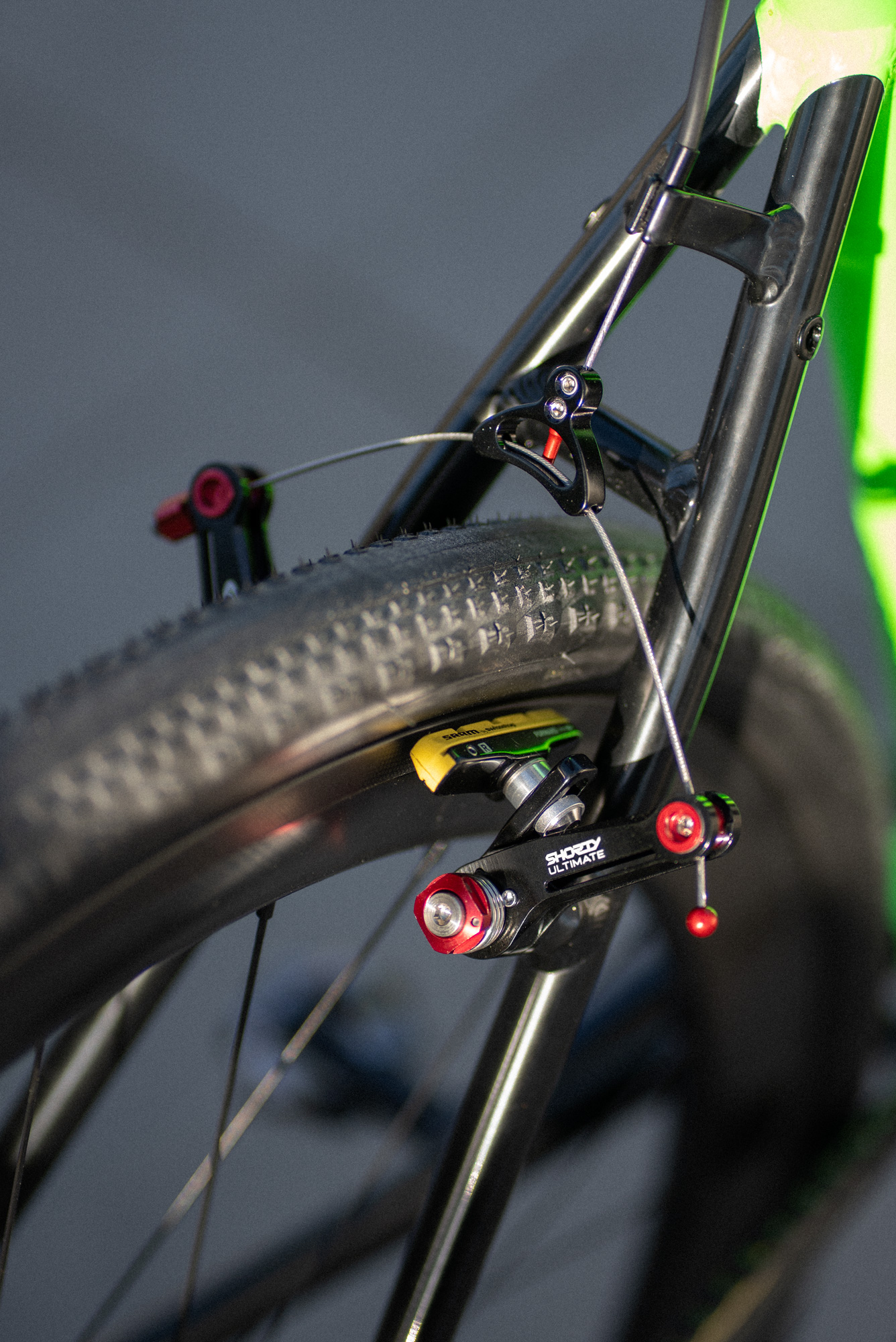

Rear Brake: Avid Shorty Ultimate + Swisstop carbon pads (137g)
Handlebars: ZNIINO carbon 400mm tops 535mm drops (194g)
Bar Tape: EXS Airtape (30g)
Bar End Plugs: Lucendi (1g)
Stem: UNO 90mm (93g)

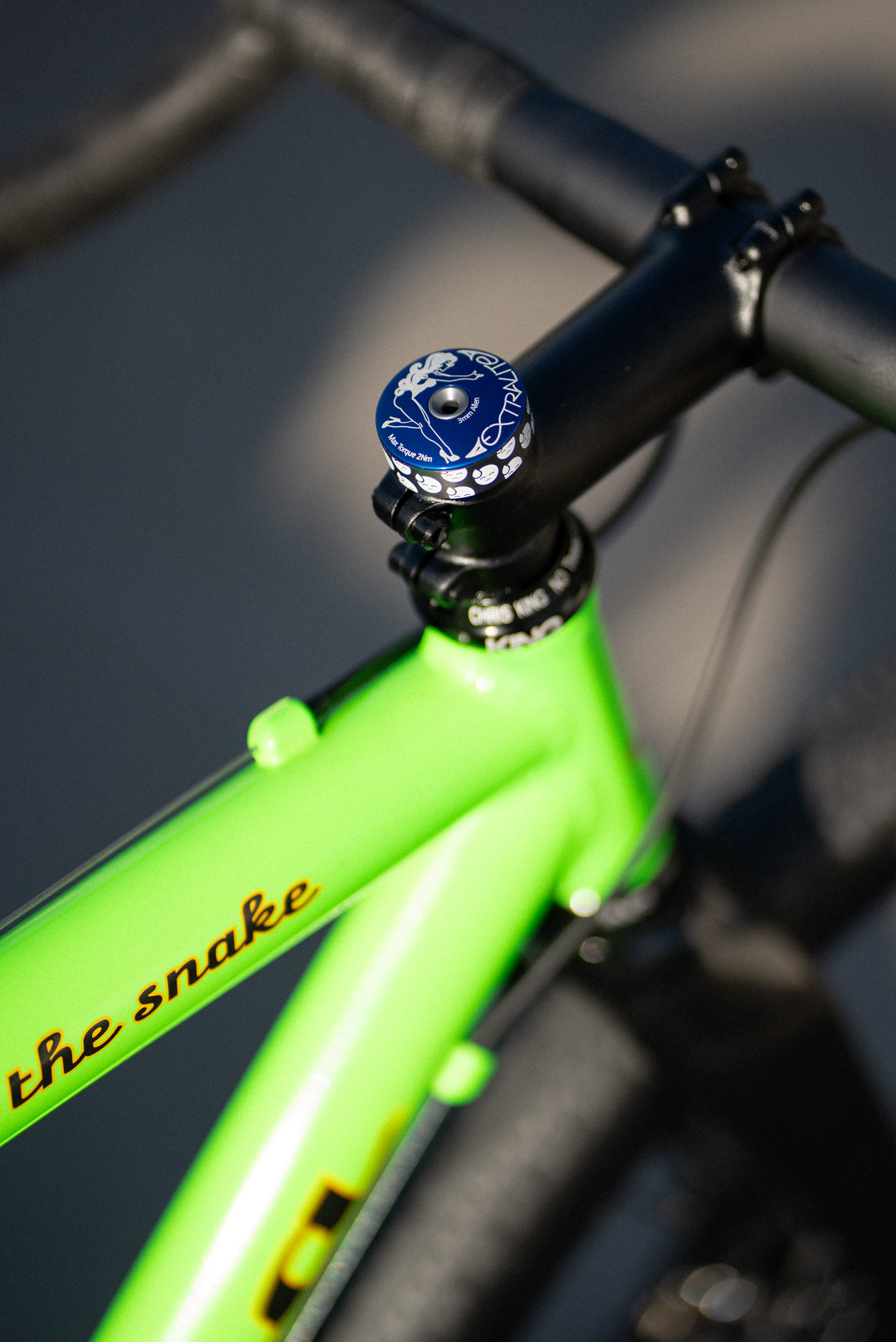

Top Cap: Extralite + Extralite bolt (2g/1g)
Spacer: God & Famous (5g)
Seatpost: Elita One 27.2 (115g)
Seatpost Clamp: 31.8 (9g)

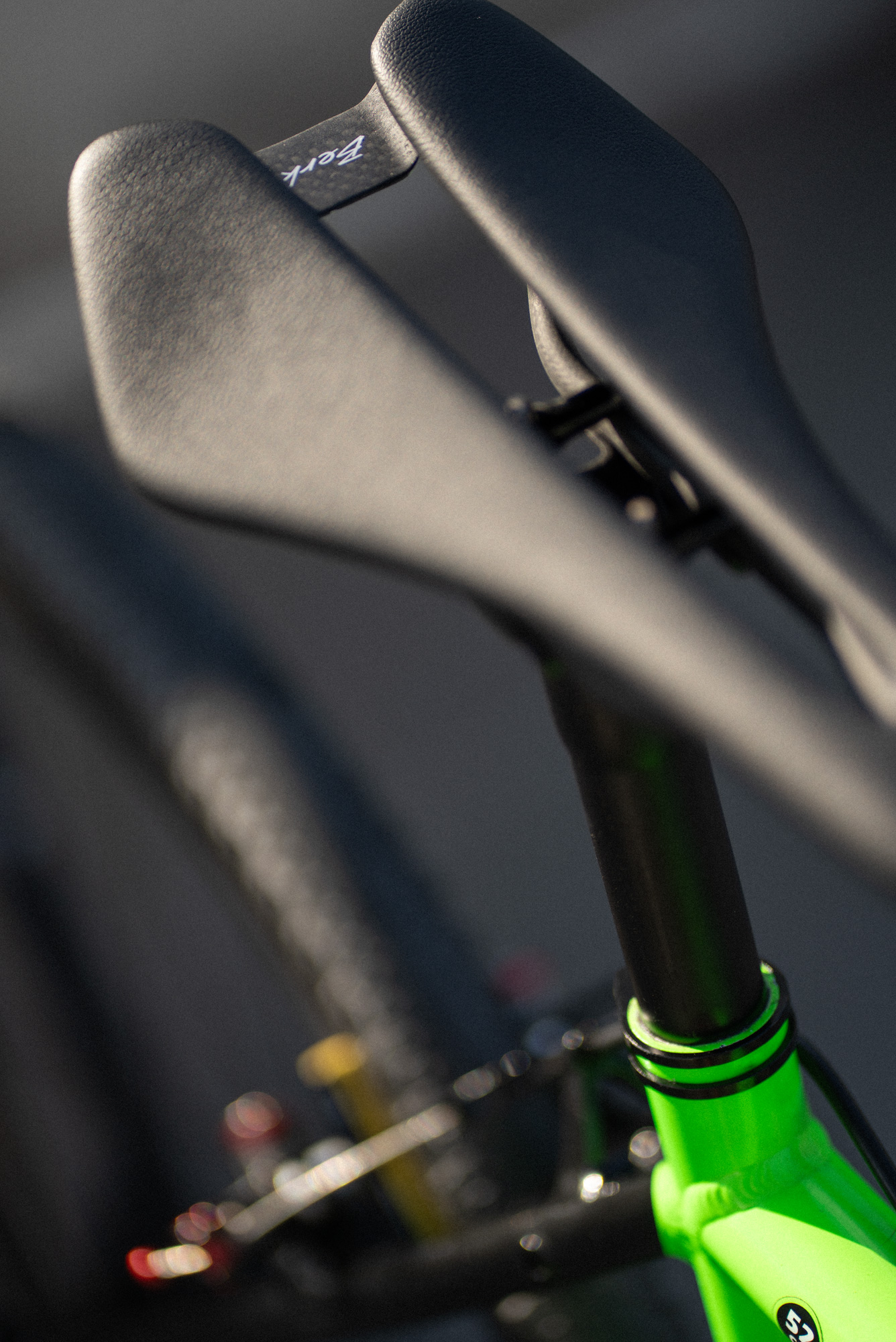

Saddle: Berk Dila 140mm (105g)
Crankset: Dura-Ace 170mm + Stone 36T chainring (610g)
Chain: YBN SLA (242g)
BB: Shimano (75g)
Pedals: Shimano SPD (374g)
Wheelset: ZEN 45mm 30EX/21IW front 26EX/18IW rear (1326g)
Tyres: Hutchinson Caracal Race 700 x 40C (482g/500g)
Tubes: Cyclami TPU (42g/44g)
Thru-Axle (front): (37g)
QR Skewer (rear): Shimano (50g)

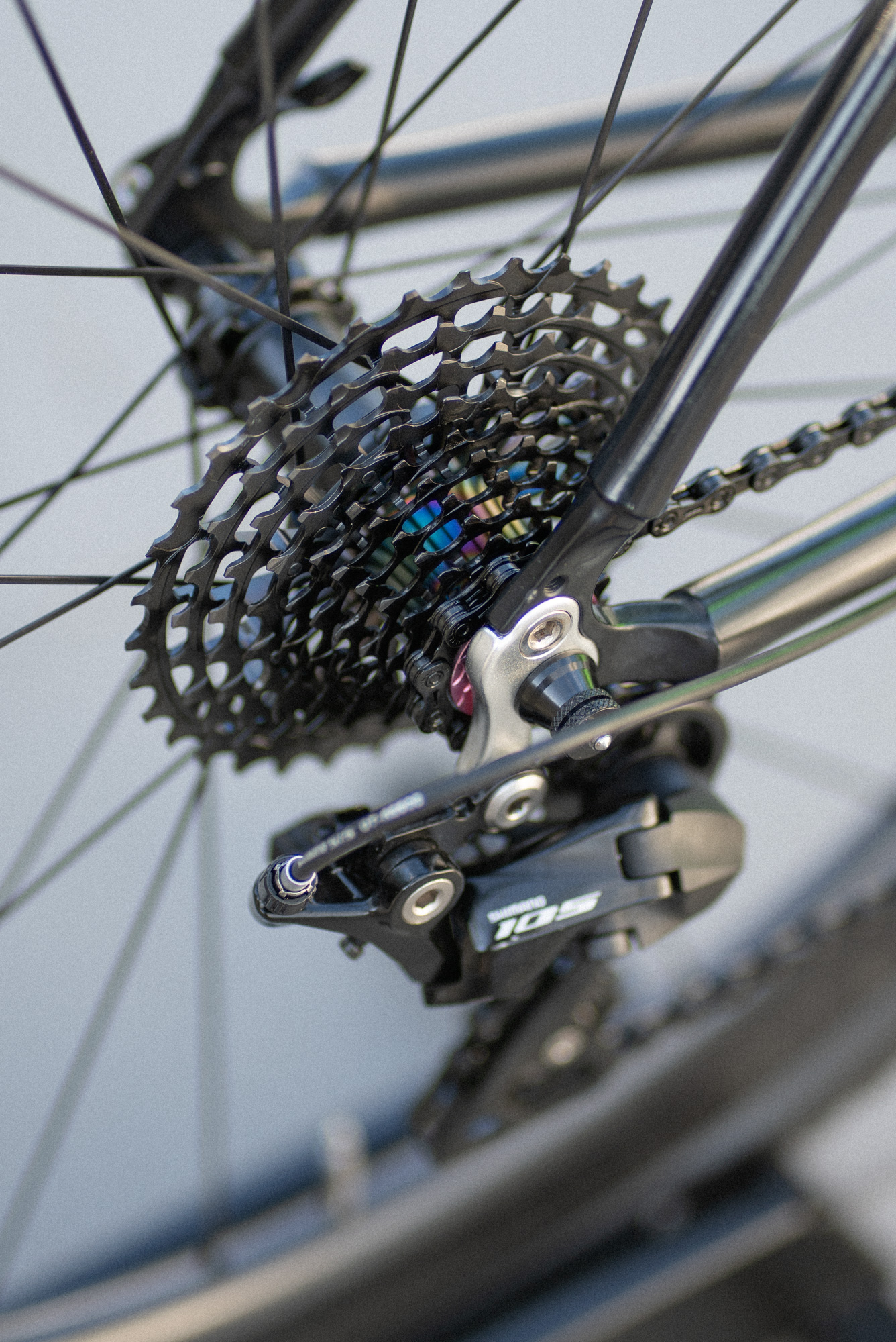

Cassette: ZTTO SLR Gen 3 11-34T (153g)
Cassette Lockring: Chaser (3g)
Bottle Cage Bolts: Ti (5g)
WEIGHT: 7.94kg
Original Weight: 9.86kg
View my full build thread on the Weight Weenies Forum: https://weightweenies.starbike.com/forum/viewtopic.php?t=178713
