I always miss my old 26″ 2008 Giant Reign and once a week I ride with my old mate Eugene who refuses to get a new bike and insists on riding his 26″ bikes. (I’ve know him since we were 3 and he got me into mountain biking in 1990). I figure there was an opportunity to build up a 26″ bike to level out the playing field a little when riding with him (IE: ride slower!).
I did a lot of research over a few months, watched a lot of YouTube vids, admittedly wasted some people’s time on FB Marketplace (BAD!), posted on reddit as well as forums. All roads led to the Yeti SB66, the original super bike as arguably one of the best and last 26 Inch bikes ever sold.
I had just about given up on finding a Yeti SB66 as they never pop up on FB Marketplace or eBay, but one day an old JDMST Forum member Alex reached out to me with a frame for sale and I jumped on it!
Alex has had this clean 2014 frame sitting in a box for the past 10+ years. I’ve brought it into 2026 with a full wireless Shimano XT Di2 groupset, FOX Transfer Neo wireless electronic dropper seatpost and a custom 26” carbon wheelset by ZEN Carbon Bike.
What’s old is new again. Much thanks to CCACHE for supplying all the components to make this dream build come to life!
SPECS:

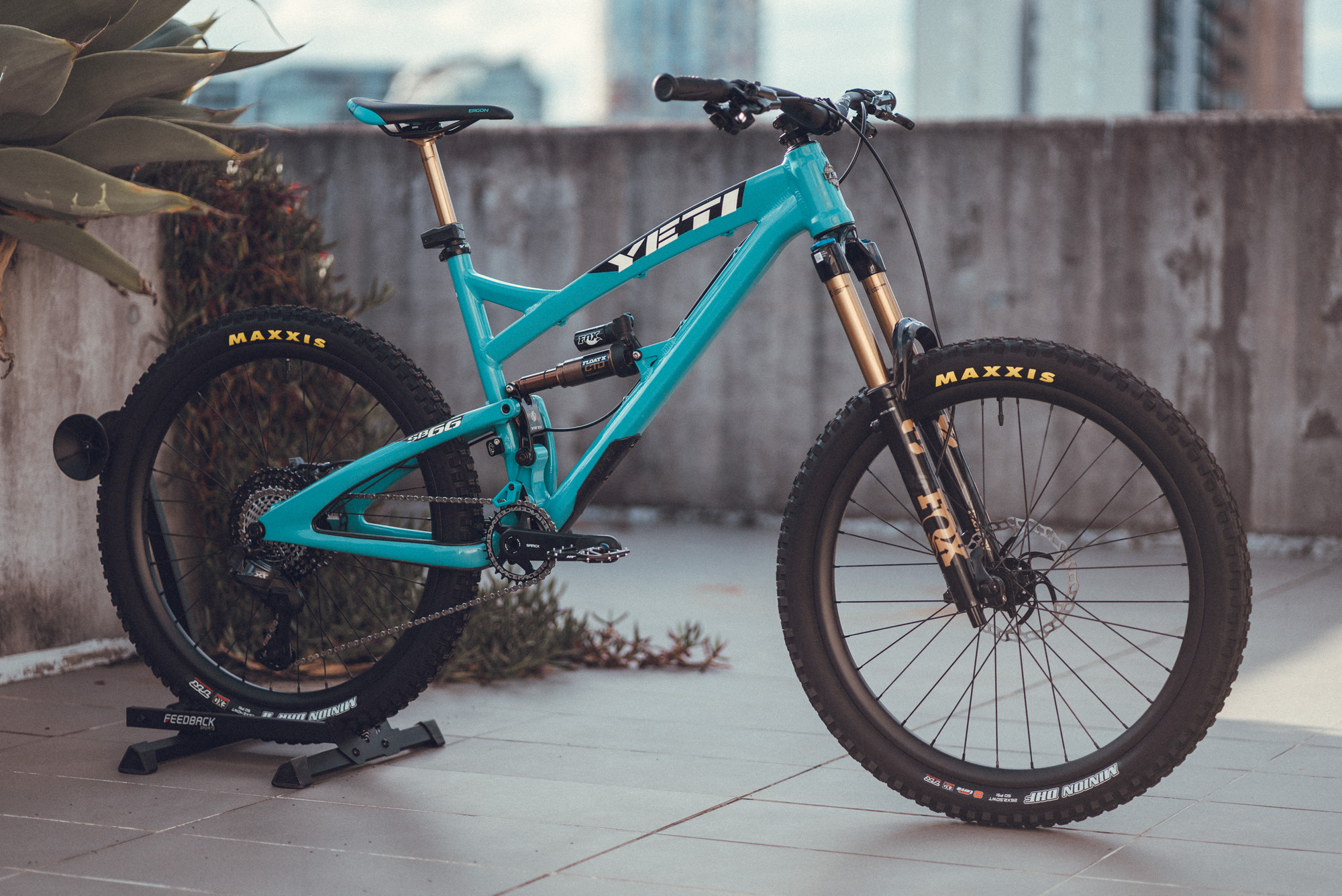

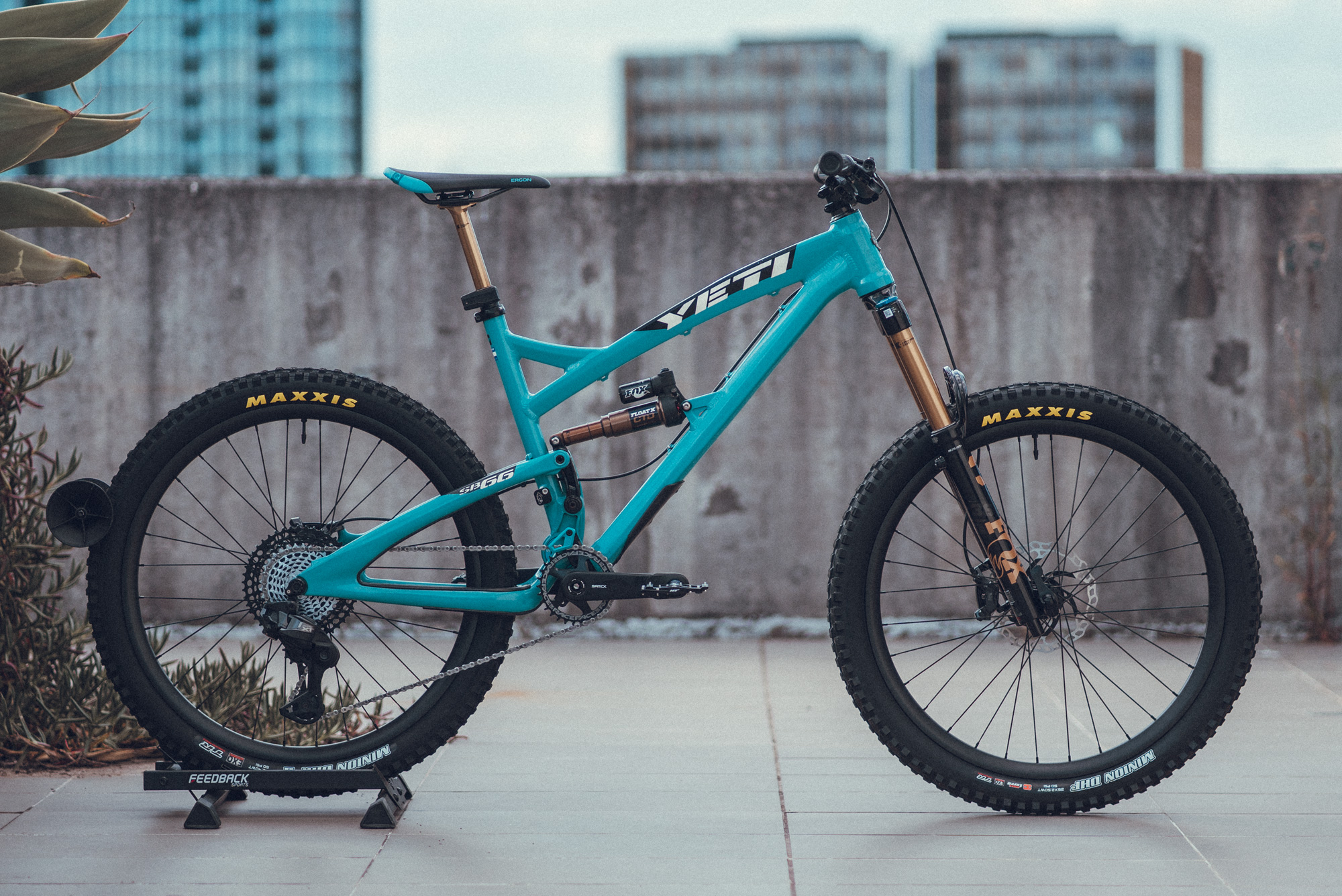

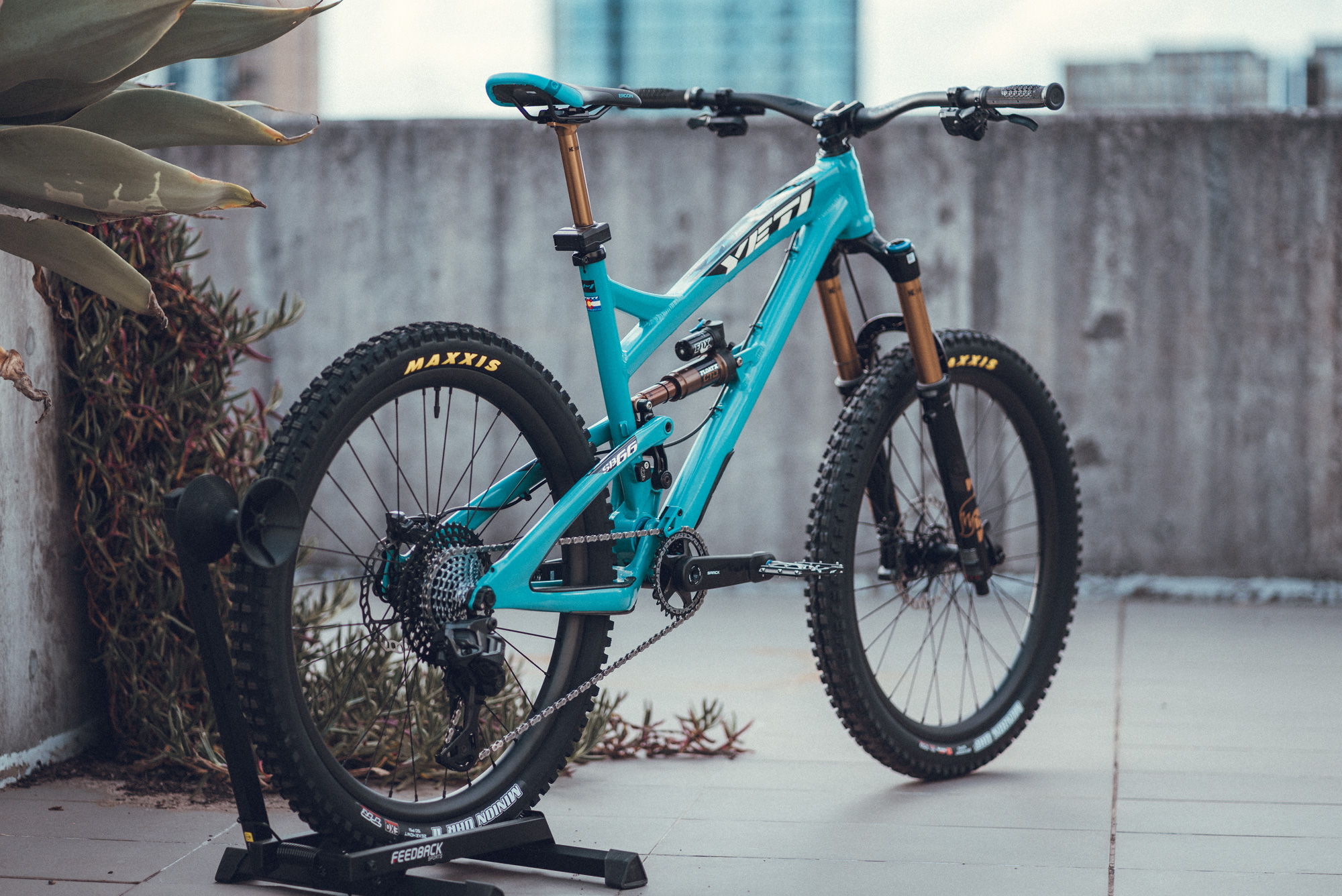

2014 Yeti SB66 alloy with carbon swingarm size medium
Frame: Yeti SB66-AC (2950g)
Thru-Axle: Shimano E-Thru 12x142mm QR (92g)
Headset: Works Components -1.0 Degree ZS44-ZS56 angleset (102g)

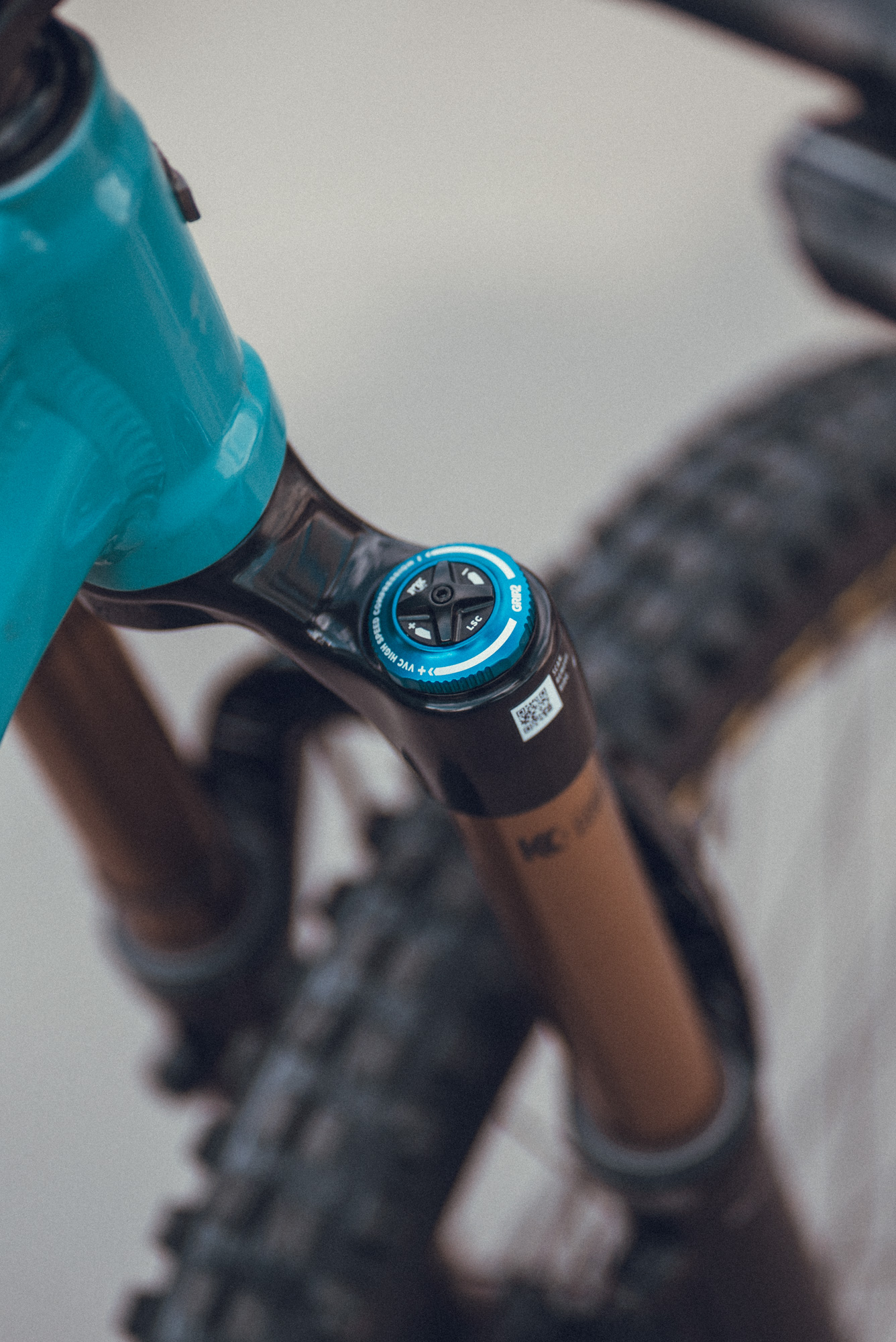

Fork: FOX 36 Factory 27.5″ 160mm + 15QRx110mm thru_axle (2124g)

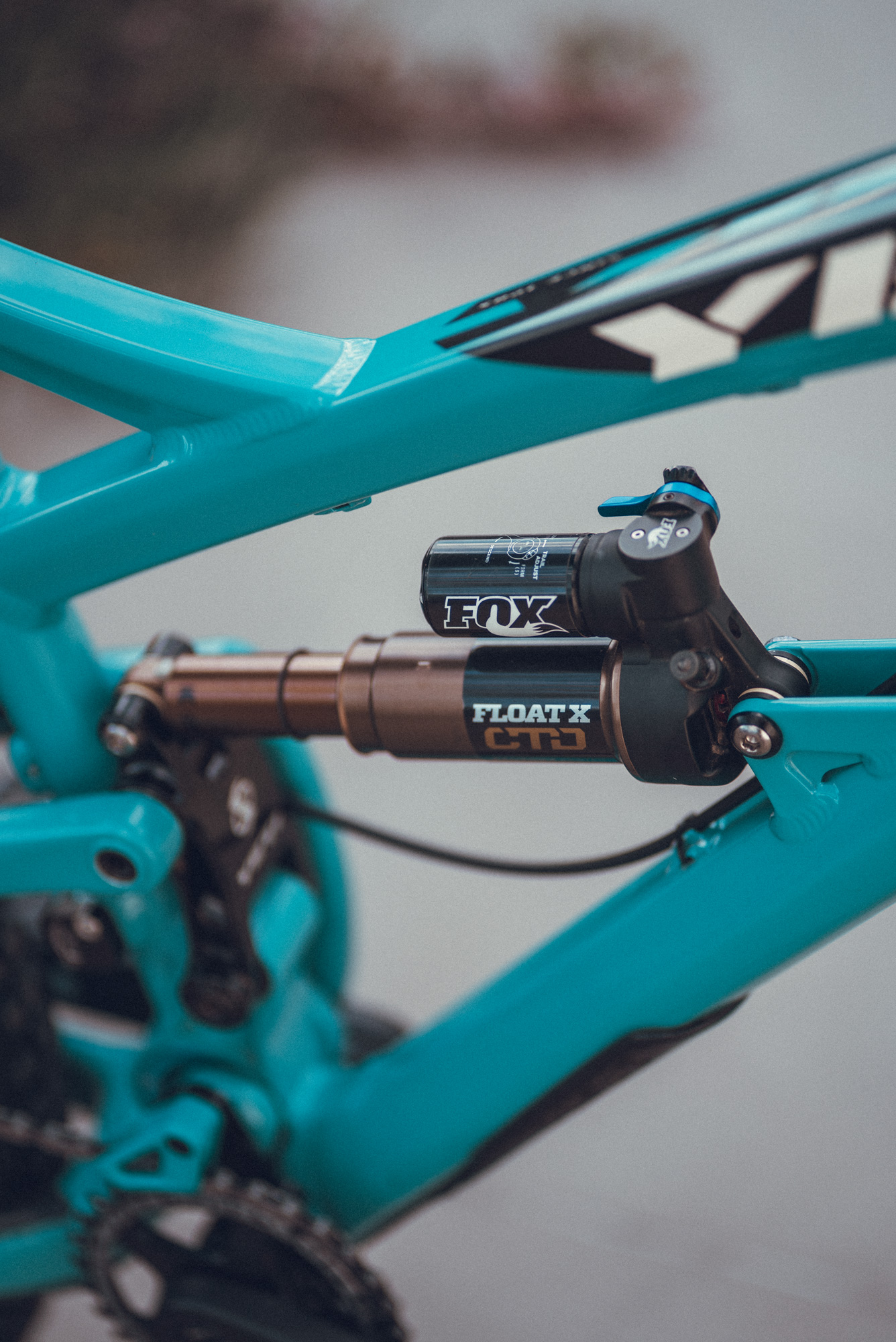

Shock: Fox Float X CTD Factory custom tune ID CNSQ (372g)

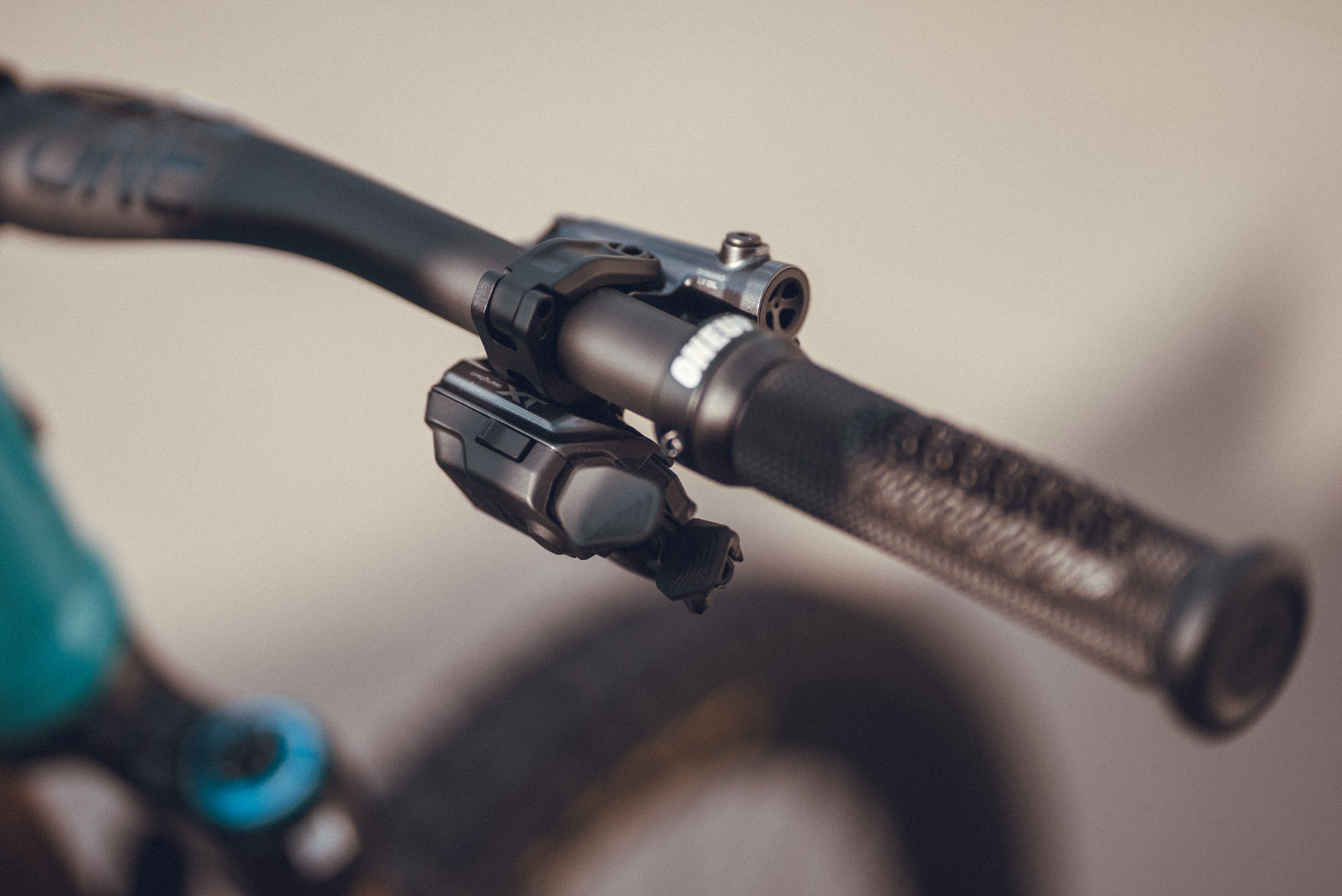

Shifter: Shimano XT Di2 SW-M6250 I-Spec EV (100g)

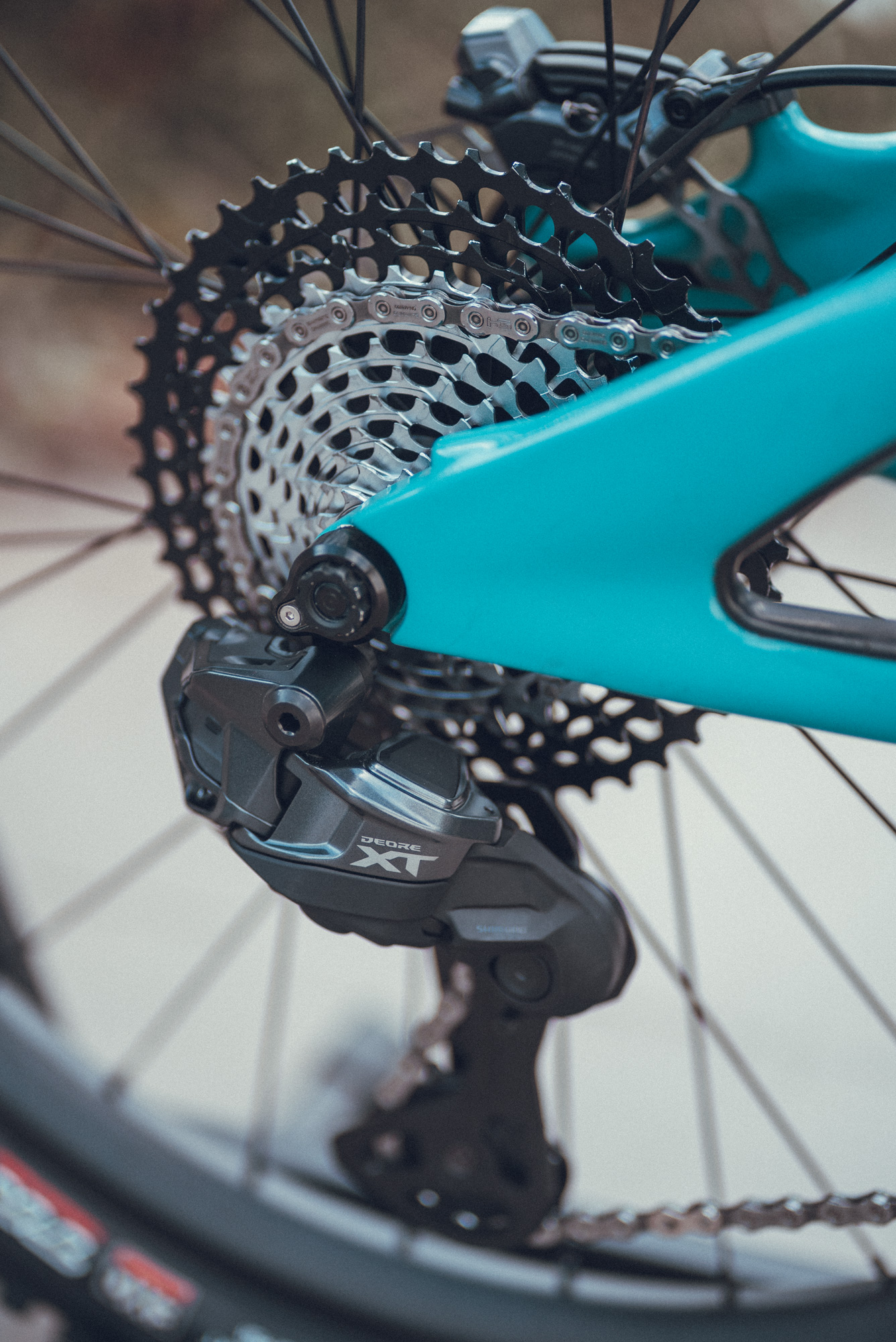

Derailleur: Shimano XT Di2 M8250 Medium Cage (468g)
Chain: Shimano CN-M8100 (252g)

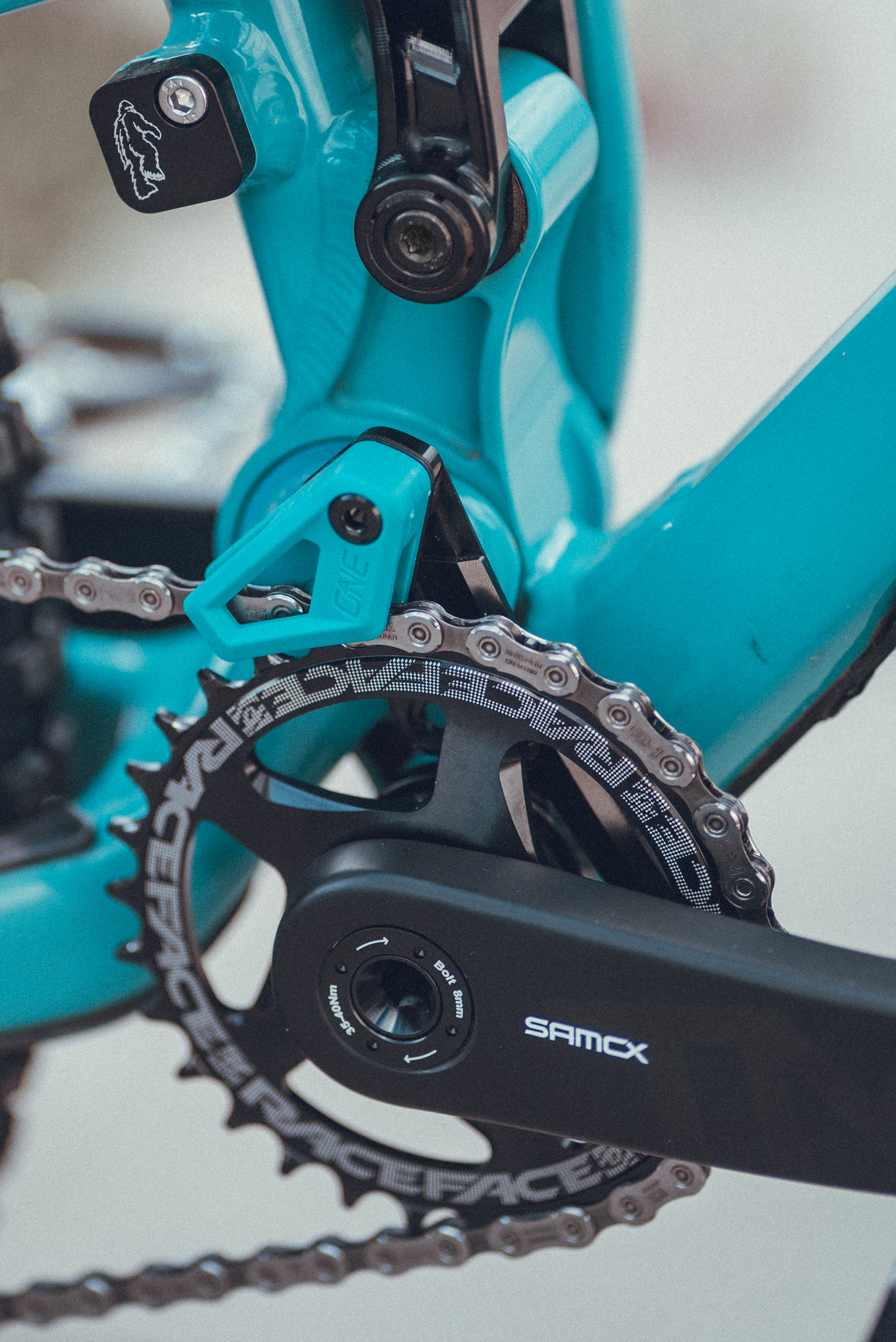

Crankset: Samox Platinum TM-1 Carbon 155mm (378g)
Crank Arm Boots: Viaron (19g)
Chainring: Race Face 30T (63g)
ISCG Mount: YETI SB66 Gen2 (22g)
Chain Guide: OneUp Components ISCG05 V2 (45g)
BB: SRAM DUB (78g)
Pedals: HT Components ME03 (264g)

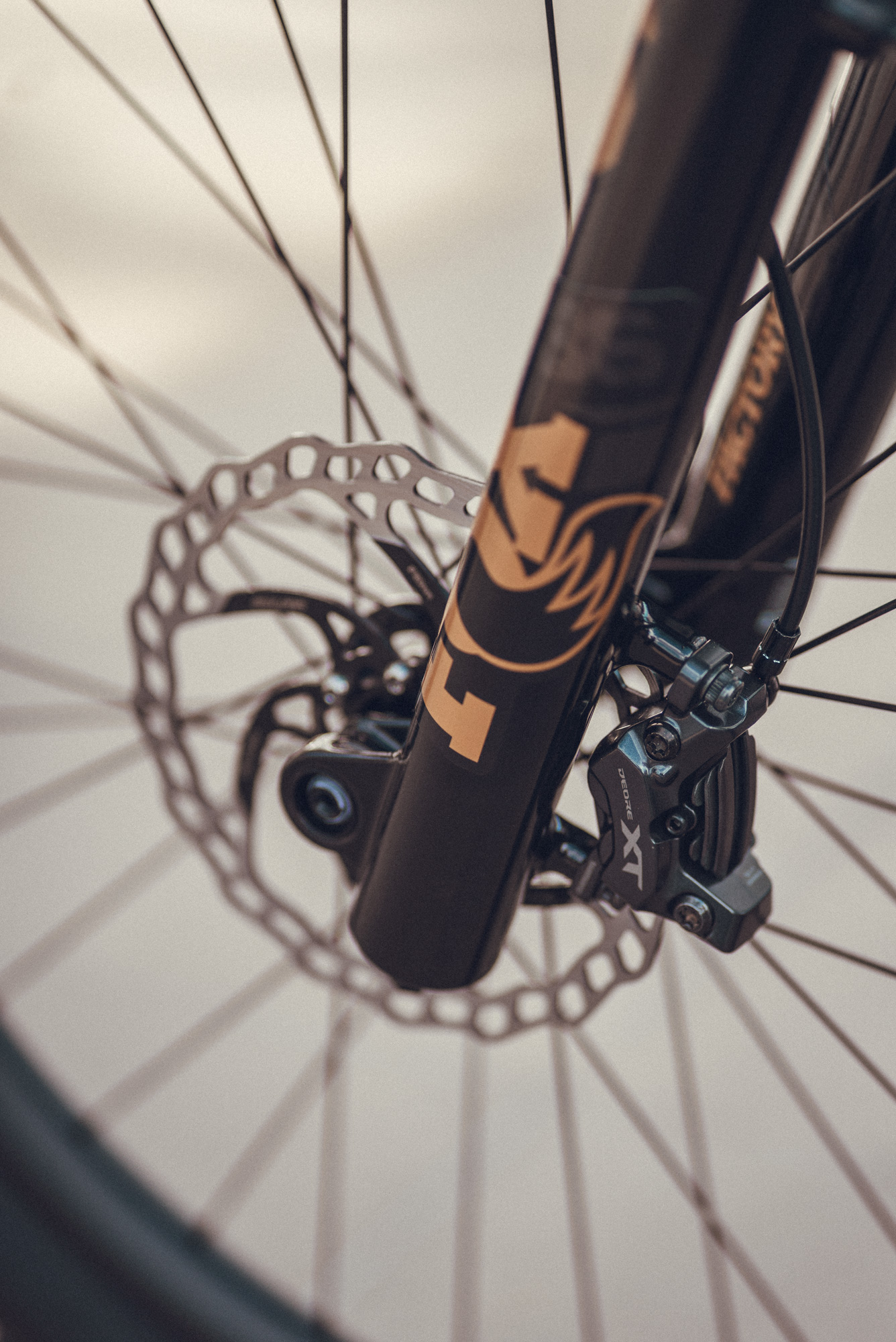

Brakes: Shimano XT Trail BR-M8220 (300g/308g)
Brake Rotors: Galfer Wave 180mm/160mm (138g/100g)
Rotor Bolts: Deemount titanium (14g)

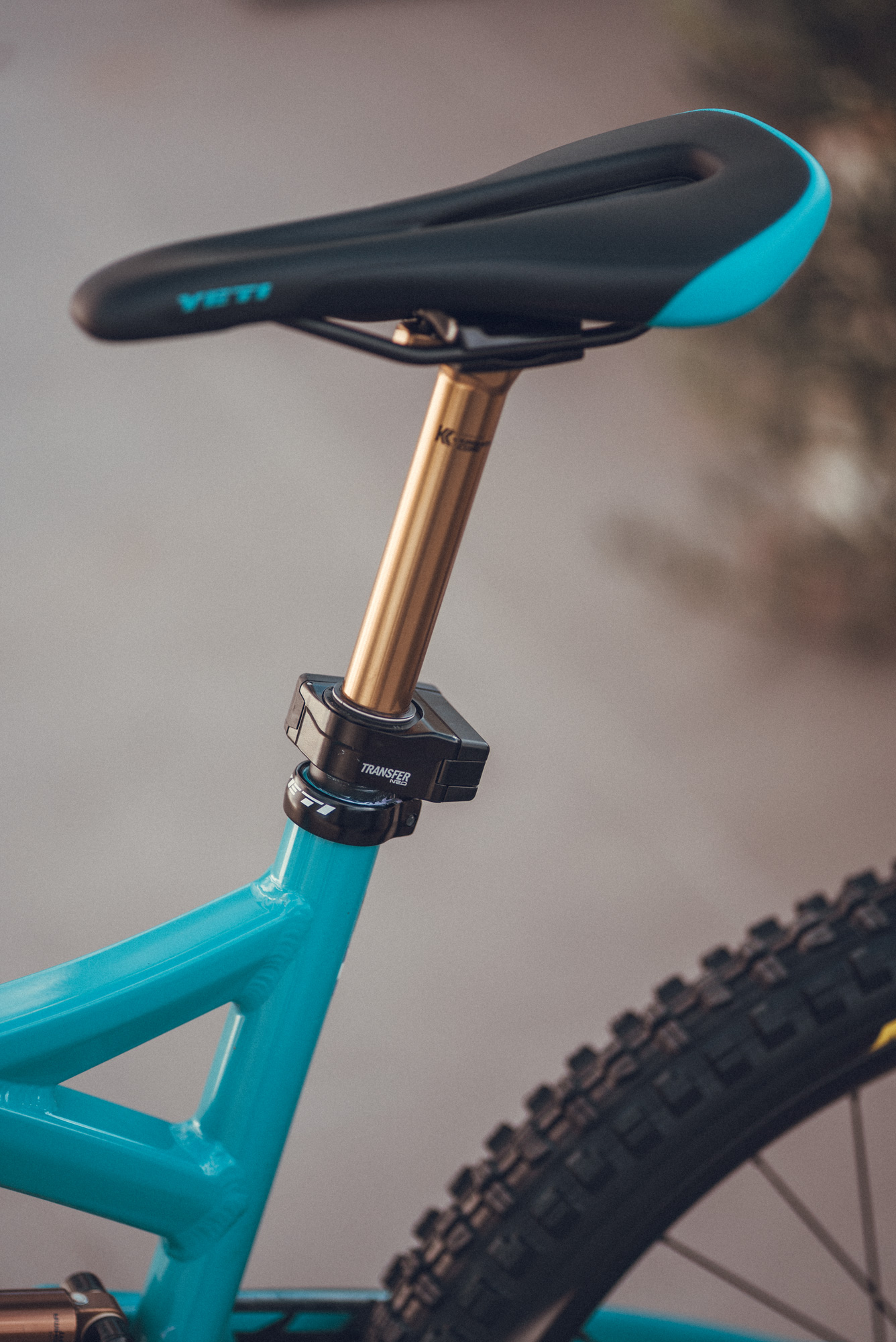

Dropper: FOX Transfer NEO, 30.9mm, 125mm (576g)
Dropper Lever: FOX Transfer NEO (62g)
Seatpost Clamp: Yeti 35mm (24g)
Saddle: Ergon SM Enduro Team S/M (204g)

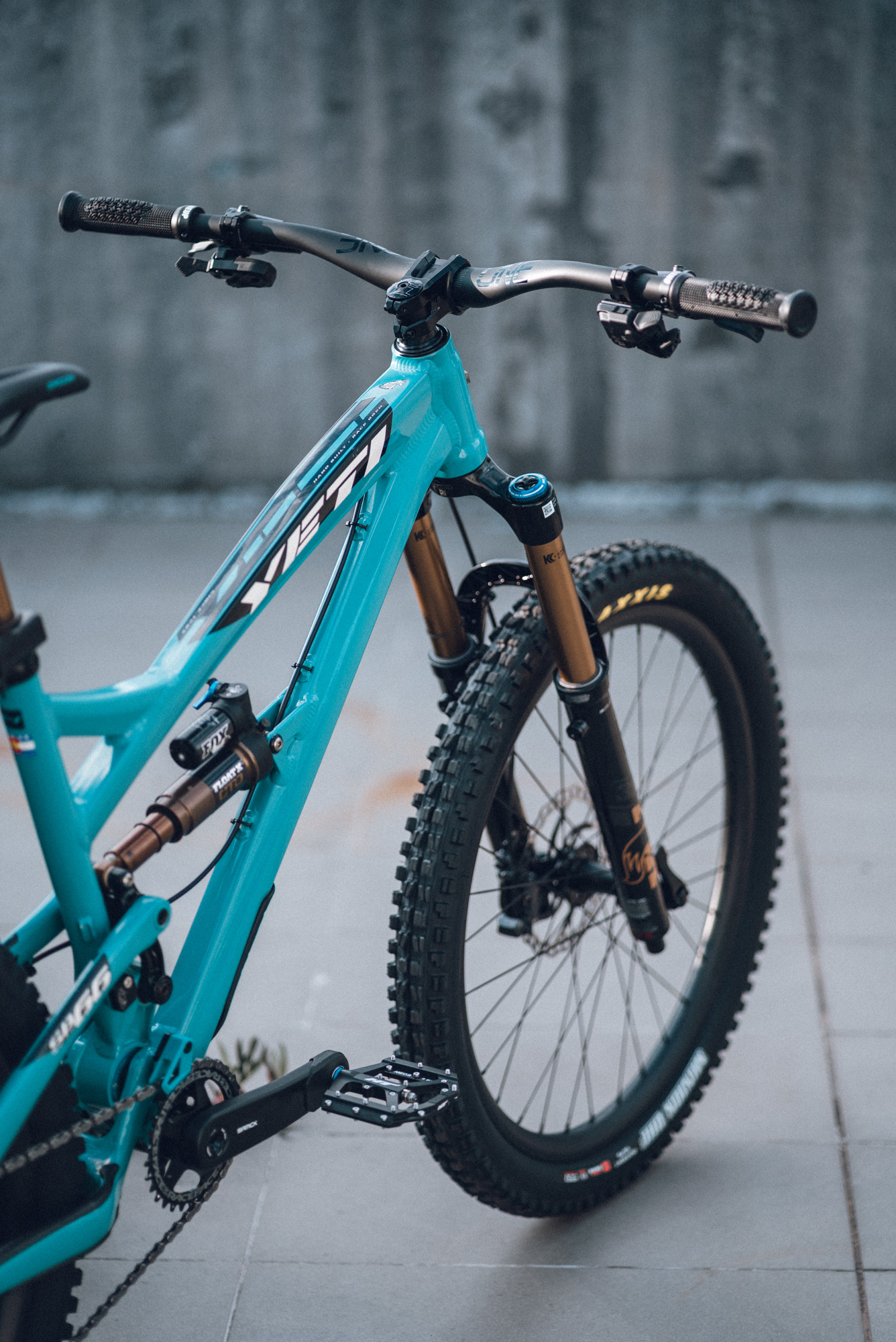

Handlebar: OneUp Components V2 Carbon 35mm rise (218g)

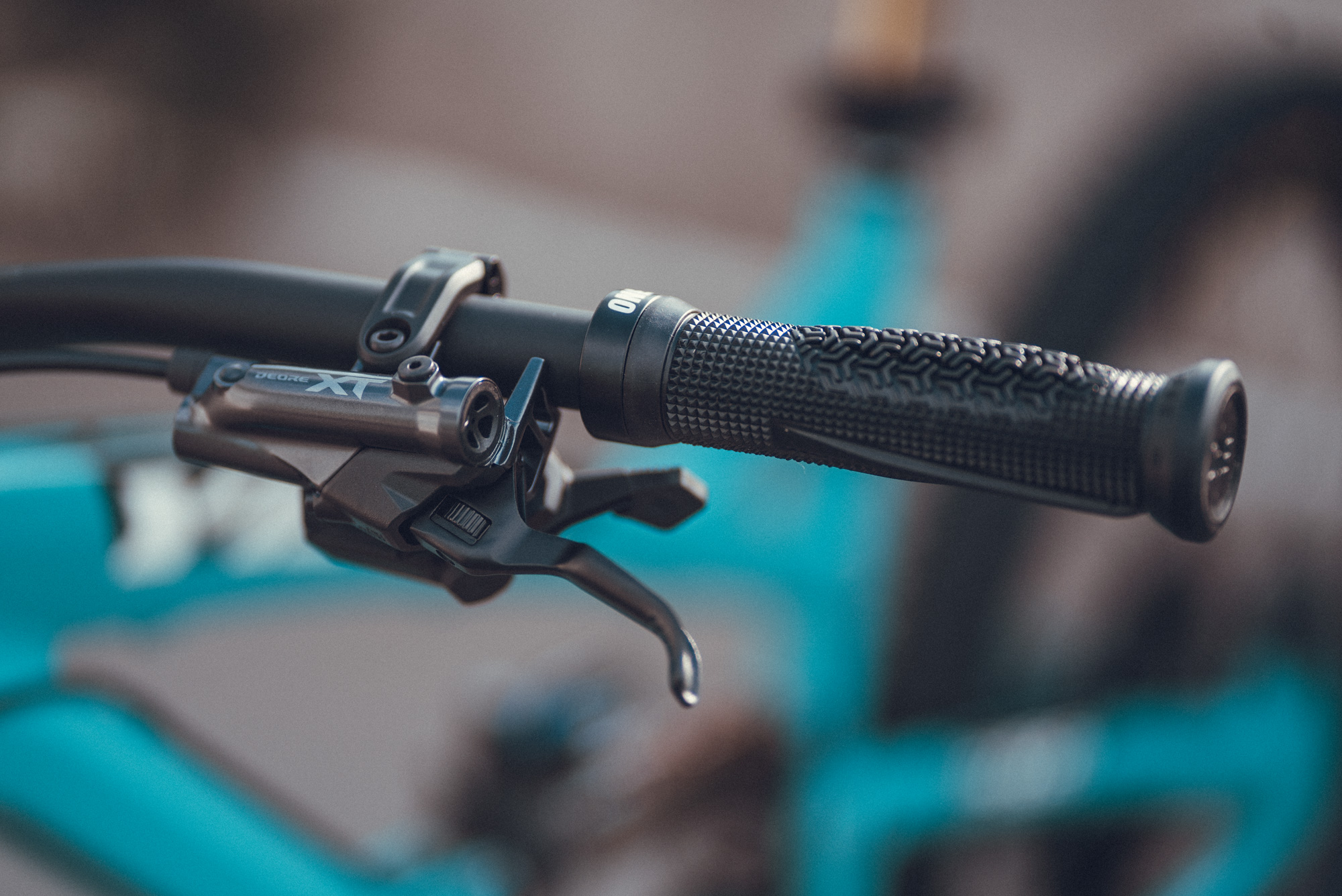

Grips: OneUp Components Jackson Goldstone (107g)

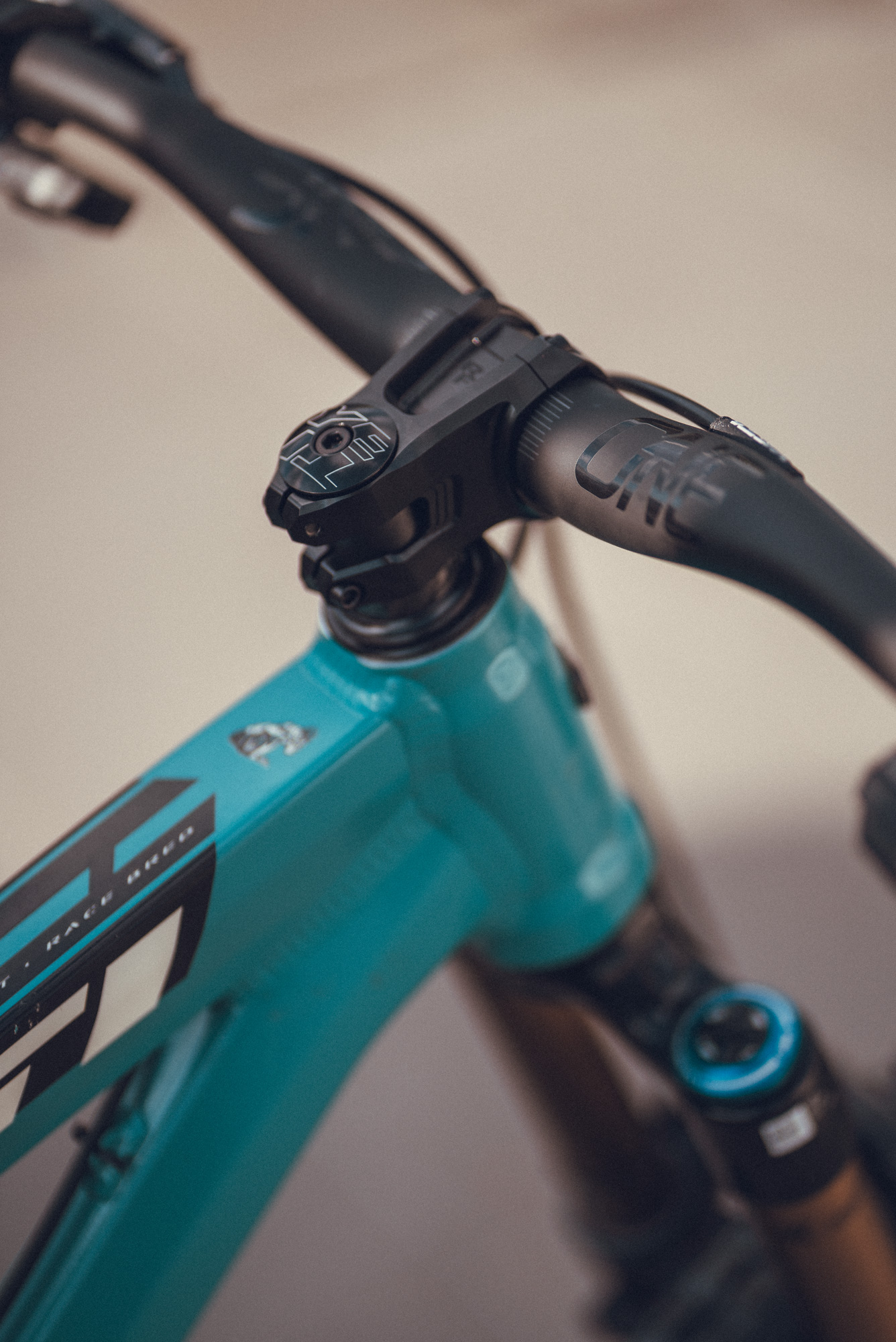

Stem: Race Face Turbine SL, 35mm clamp, 50mm length (122g)
Top Cap: Yeti +10mm spacer: (13g/3g)
Cassette: ZTTO 9-46T XD (286g)

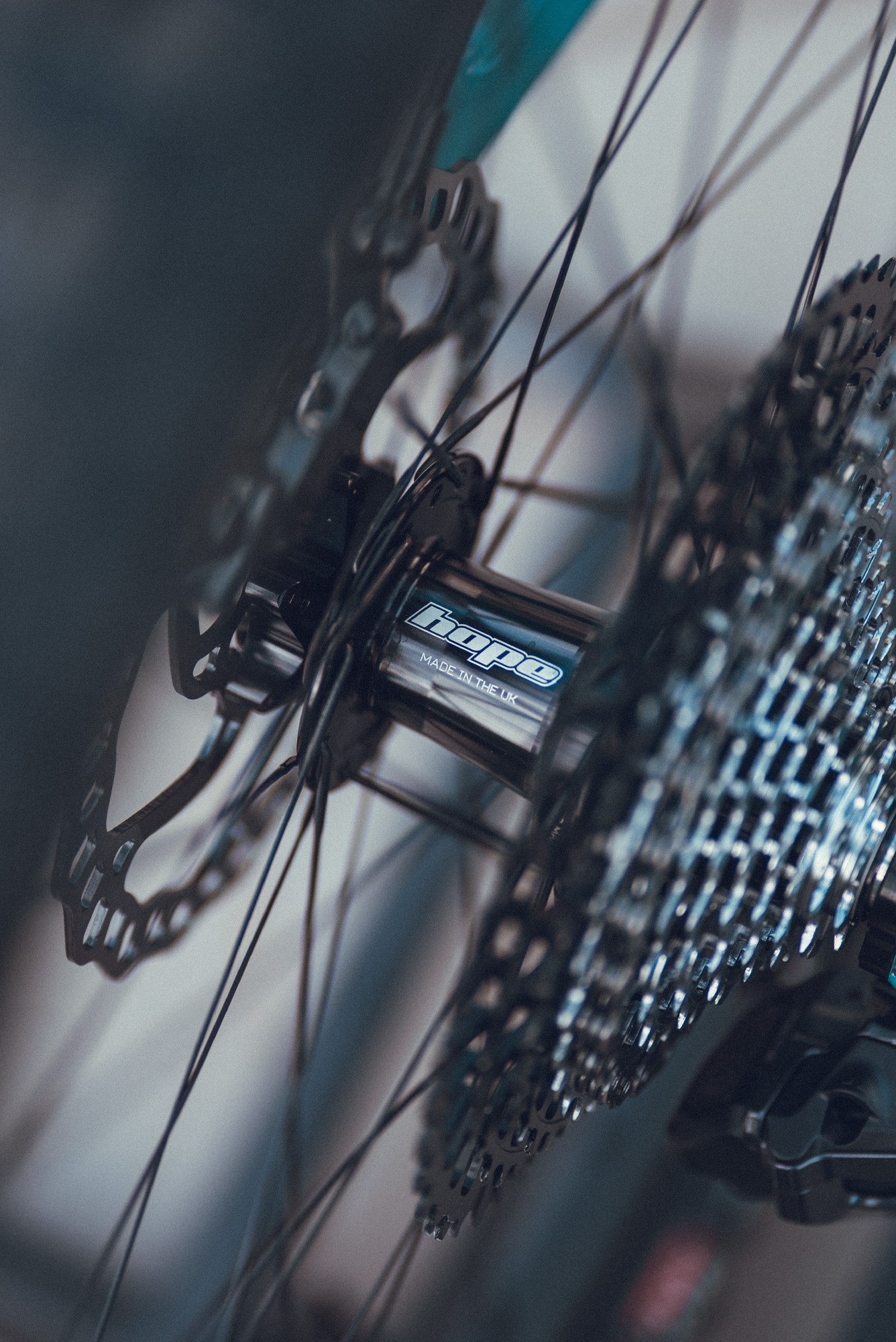

Wheelset: ZEN Carbon Bike 30mm int, M340/Hope Pro V, Sapim CX Ray (1413g)
Front Tyre: Maxxis DHF 3C MaxxTerra EXO TR 2.5 (957g)
Rear Tyre: Maxxis DHR II DC EXO TR 2.4 (912g)
Valves: ZEN Carbon Bike 42mm (8g)
Rim Tape: Dynamic 32mm (17g)
Sealant: Silca Ultimate (180g)
Misc: Yeti cable protect set (1g)
WEIGHT: 13.3kg
Full Build Thread on Rotorburn Forums: https://www.rotorburn.com/forums/index.php?threads/2014-yeti-sb66-ac.324173/
